商品の詳細:
お支払配送条件:
|
| 名前: | 100%ポリエステル 螺旋式乾燥機網帯 | 色：: | 白、青、赤 |
|---|---|---|---|
| サイズ：: | 0.1～30m | 応用：: | 製紙業 |
| アドバンテージ：: | 高い耐摩耗性 | パッキング：: | 簡単なパッキング |
| 材料: | 100％ポリエステル | 適切な温度: | +150°Cへの-75°C |
| ハイライト: | polyester spiral mesh conveyor belt,sludge dewatering conveyor belt,food drying polyester mesh belt |
||

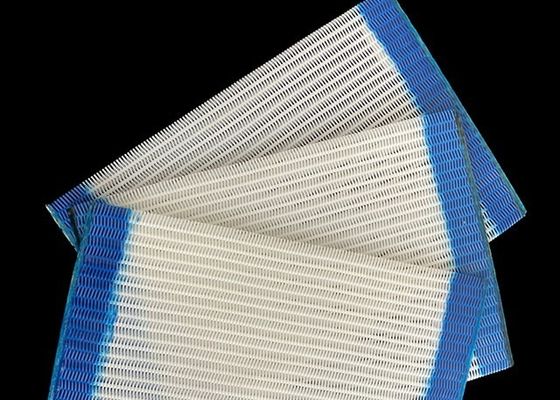

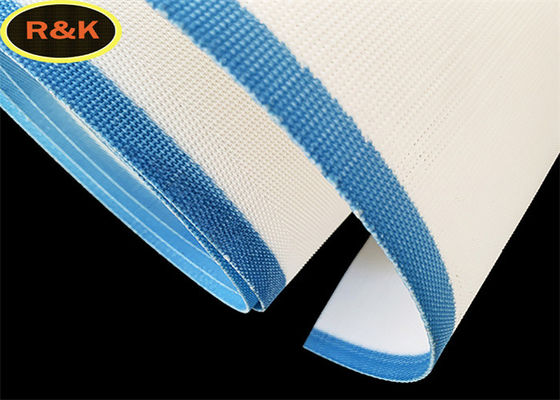

Polyester spiral mesh conveyor belt for sludge dewatering fabric used for drying food and paper
| Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Strength ((N/cm) | Air Permeability (m3/m2h) | ||
| (mm) | |||||||
| Warp | Weft | Warp | Weft | ||||
| 2-shed plain weaving | 05802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | 20000 |
| 05102 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | 15000 | |
| 06702 | 0.7 | 0.7 | 8 | 7 | 1600 | 11000 | |
| 07102 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | 15000 | |
| 08552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 | |
| 09452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 | |
| 09502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | 10000 | |
| 12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
| 3shed plain weaving | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
| 8903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 | |
| 7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 | |
| 20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 | |
Polyester Mesh Belt Data Sheet
| Product Name | Polyester Mesh Belt White High Tension Plain Weave 100% Polyester Mesh Belt Used For Conveyor Belt |
| Loop Size | Small Medium Large Loop |
| Material | 100% Polyester |
| Applicable Industries | Energy & Mining Food & Beverage Shops, Advertising Company , Paper Making Industry |
| Color | Blue , white and Red |
| Certificate | ISO9001 |
| Type |
Polyester Dryer Belt Polyester Sprial Press Filter Belt |
| Packaging | Plywood Case and woven mesh |
Polyester Mesh Belt Advantage
-1. The spiral filter screen is a kind of spiral screen with fillers in the middle, which can reduce air permeability, compact the mesh holes, reduce material loss on the mesh holes, and increase the lateral rigidity of the grid
2. Due to the herringbone design of the mesh belt, it can quickly separate sludge from the mesh belt and is less likely to stick to sludge. It generates a large amount of sludge, is easy to clean and the connection is convenient and fast.
3. Spiral pressure filter screens are mainly used for sludge dewatering in sewage treatment plants. It has the characteristics of air
Permeability and water permeability, high-temperature resistance up to 180 ℃, acid and alkali resistance, and sludge impermeability.
4. Due to its design structure, the sludge can be easily peeled off after pressure filtration, making it easy to clean. Service lifet is very long.
